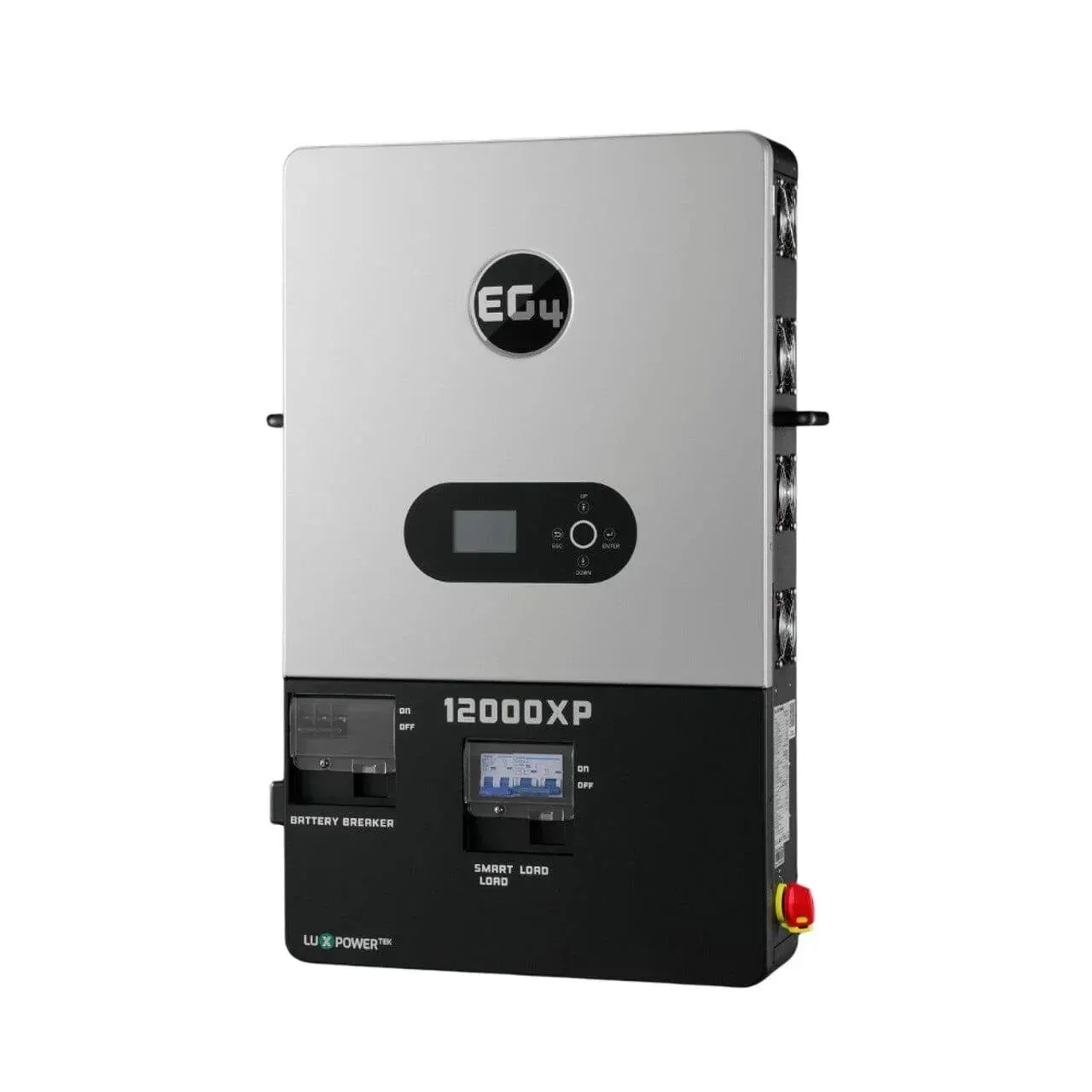

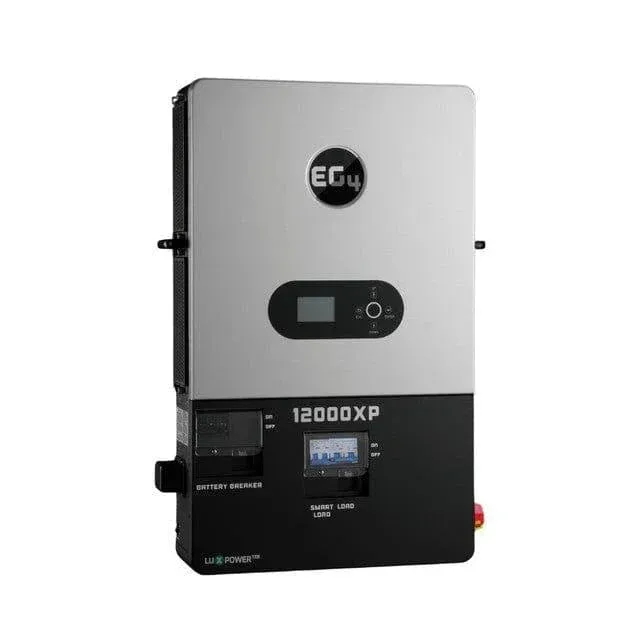

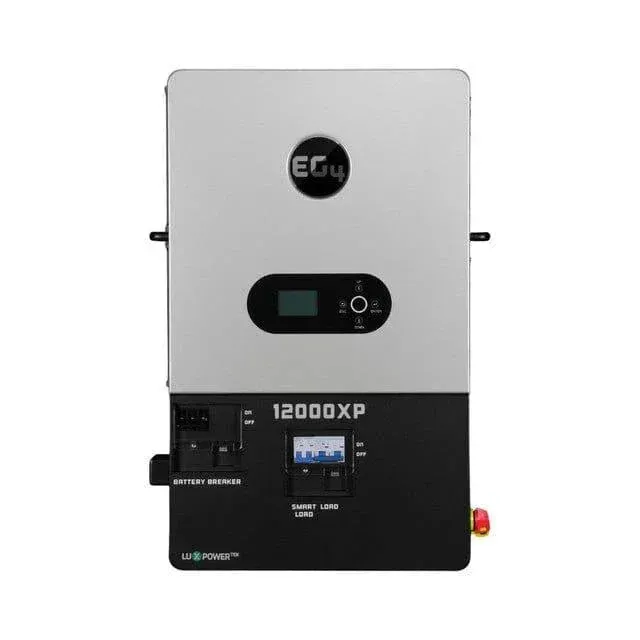

EG4 12,000XP Off-Grid Inverter | 48V Split Phase | 24kW PV Input | 12kW Power Output
Why this product is a must-have: The EG4 12,000XP Off-Grid Inverter combines high power output, efficiency, and advanced communication features, making it an essential component for those looking to embrace off-grid living or enhance their energy independence.
Key Features
- High Input Voltage (480VDC): Supports up to 24kW PV input, minimizing cabling needs and eliminating the requirement for a combiner box.
- Dual MPPT Design: Maximizes solar energy utilization with optimal efficiency and stability under various sunlight conditions.
- Plug-in Wi-Fi Capability: Allows remote monitoring and adjustment of settings via the EG4 app or Monitor system, enhancing convenience and control.
- Closed-Loop Communication: Integrates seamlessly with EG4 48V batteries and select brands to improve system performance and safety.
- Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown capabilities for enhanced safety compliance.
Performance Highlights
- 12kW Power Output: Consistent and robust power delivery, capable of managing heavy-duty appliances and equipment.
- Surge Capacity up to 18kW: Provides extra power for demanding situations, lasting up to 5 seconds.
- Expandable Power Options: Parallel up to six units for a total system capacity of 72kW, allowing for future scalability.
- High Efficiency Rates: Achieves an impressive 99% MPPT efficiency, optimizing energy harvest and reducing loss.
Technical Specifications
- AC Input: 120/240VAC | 50/60 Hz
- Max Continuous Output: 12kW
- Battery Compatibility: Supports Lead-Acid/Lithium with a minimum recommended capacity of 400Ah per inverter.
- Operating Temperature: 32°F – 113°F (0°C – 45°C)
- Protection Features: Includes PV Reverse Polarity, Over-Voltage, and Surge Protection.
- Warranty: 5 years
Ideal Applications
- Residential Off-Grid Living: Perfect for homeowners seeking independence from the grid.
- Remote Worksites and Cabins: Ensures consistent power supply in isolated locations.
- Commercial and Industrial Use: Reliable for demanding off-grid requirements.
Why Choose the EG4 12000XP? With its high output, advanced safety features, and remote management capabilities, the EG4 12,000XP off-grid inverter stands as a top-tier solution for all your off-grid energy needs, providing reliability and scalability for both residential and commercial applications.
